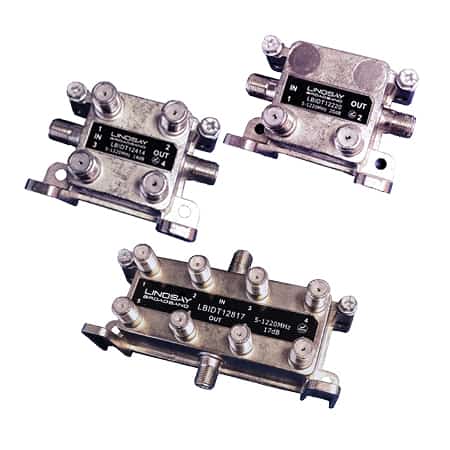

Lindsay Broadband’s LBI series of digital subscriber drop splitters are specifically designed for use in all transmission applications for RF, digital telephony, QPSK and QAM data. These splitters use Lindsay-engineered low intermodulation ferrite material and blocking capacitors to prevent high level ingress in the reverse path from affecting forward signals – essential when providing high-speed cable modem service. Increased reliability, performance and quality are achieved through the use of FR4 glass PCB material, Hi-Q® surface-mount technology (SMT) components, and a through board multiple grounding system.
Features
Documentation & Tools
Related Products
Solutions
Features
- Expanded bandwidth 5-1218 MHz to support DOCSIS® 3.1 multimedia digital communications
- Solder back plate for improved RFI isolation ≥ 120 dB
- 6 kV Ring Wave surge protection with dual-hardened high-voltage disk capacitors & surge shunts on all ports
- 1″ port-to-port spacing with 360° phosphorous bronze F-pin seizure mechanism for superior contact
- Machined F-ports for improved grounding
- Individually packaged with mounting screws for ease of installation
- Integral heavy-duty ground block & mounting tabs for professional mounting
- Excellent return loss & port-to-port isolation in the upstream
- Superior intermodulation distortion & second harmonic performance
- Excellent return path performance of 25 dB output return loss & 40 dB isolation
- Blocking capacitor for all ports
- Operating Temperature Range: -40°C to +60°C (-40°F to +140°F)
- 15 PSI waterproof
- Conforms to applicable SCTE standards
- Pull force center conductor seizure > 200g
- Intermodulation: -100 dB
